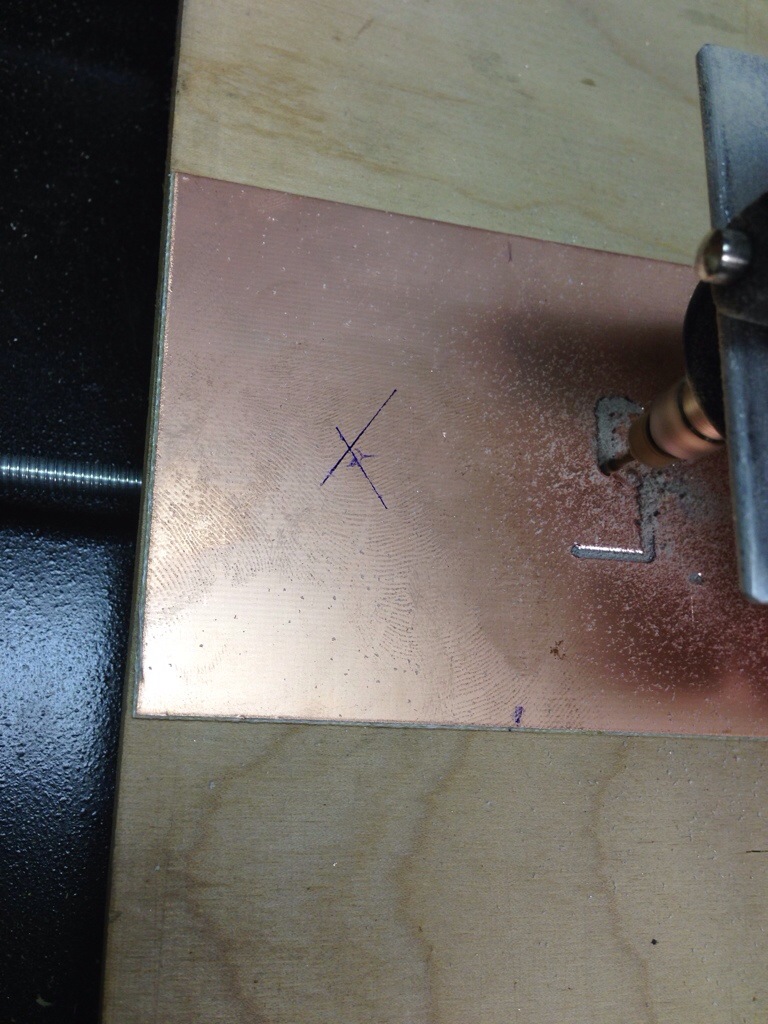

My friend John was over and asked me if the CNC machine could be used to drill PC boards. I said sure, it could even route them too

So I decided to give it a try. I found a simple QRP transmitter design which I could use for an arduino project and tried to make a couple

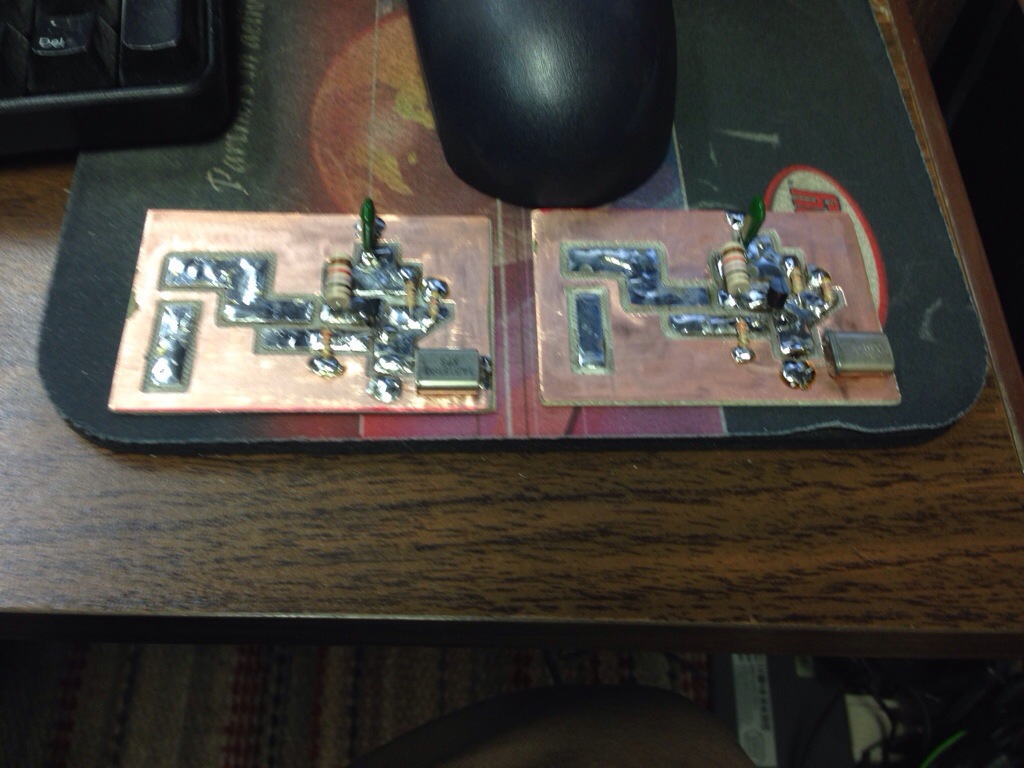

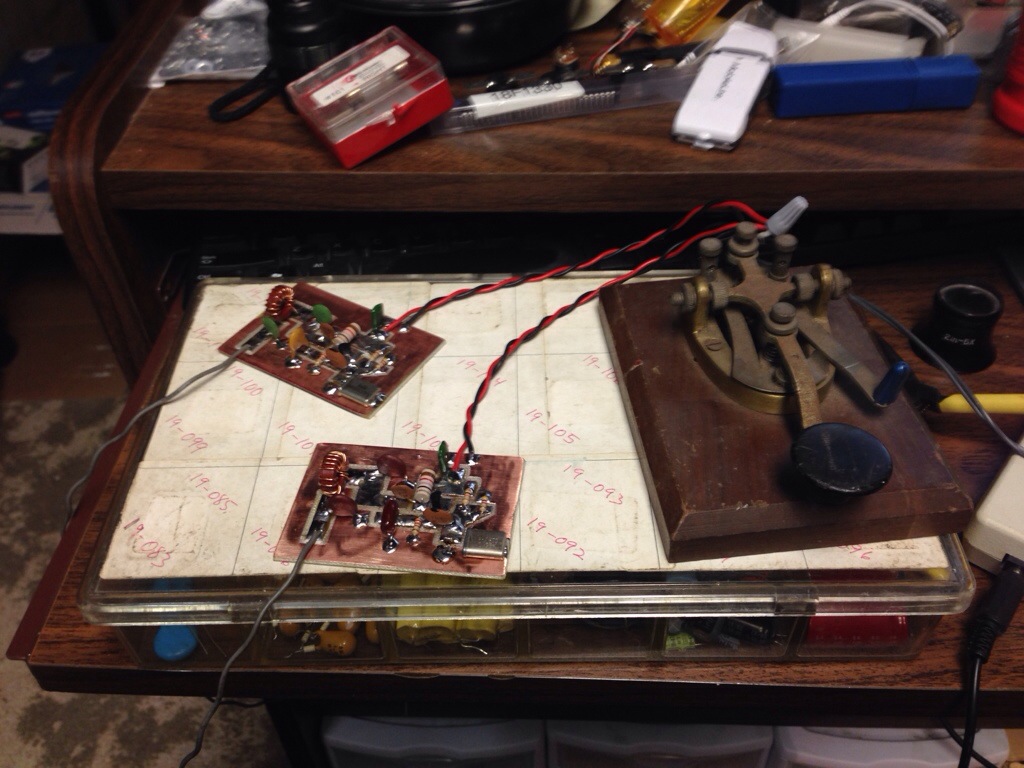

I built a 20M and a 40M board. They worked so well I’m going to route 2 more for 80M and 160M
